상세 정보 |
|||
| 가소화 능력: | 150 g/s | 주형 높이: | 160~300mm |
|---|---|---|---|
| 방출기 수: | 2 | 이젝터 스트로크: | 60mm |
| 이젝터 힘: | 1.8 나트 | 이론적 샷 볼륨: | 170cm³ |
| 주사율: | 113g/초 | 주입 중량: | 141g |
| 나사 속도: | 0 - 215rpm | 나사 직경: | 40 mm |
| 나사 L/D 비율: | 22 | 타이 바 사이의 거리: | 510 밀리미터 |
| 무게: | 2400kg | 오픈 스트로크: | 540mm |
| 힘: | 12.8 KW | ||
| 강조하다: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
제품 설명

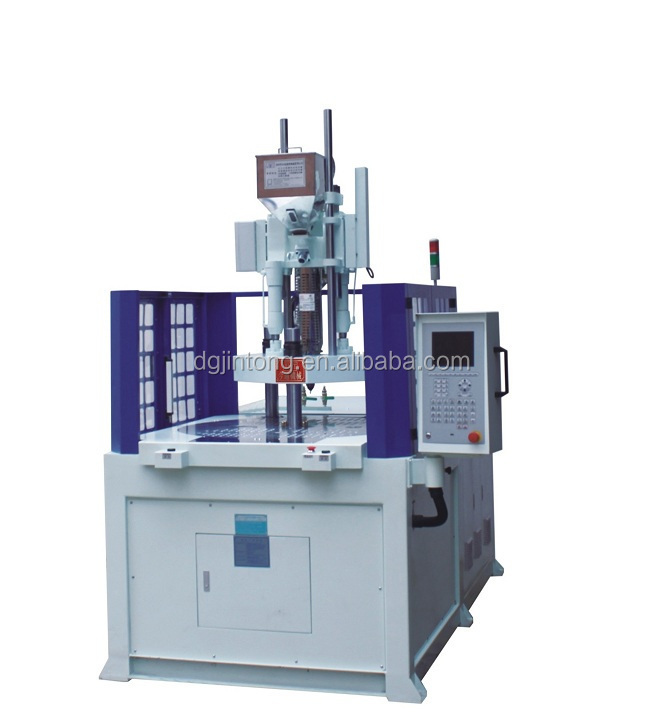

Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description
Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
Packing & Delivery
