상세 정보 |
|||
| 가소화 능력: | 400g/초 | 주형 높이: | 260 - 530mm |
|---|---|---|---|
| 이젝터 스트로크: | 75mm | 이젝터 힘: | 34kN |
| 샷 볼륨: | 570cm³ | 주사율: | 202g/초 |
| 주입 중량: | 513g | 나사 속도: | 1~155rpm |
| 나사 직경: | 55 밀리미터 | 스크루 L/D: | 28 |
| 타이 바 거리: | 660mm | 기계 무게: | 7000kg |
| 오픈 스트로크: | 500mm | 힘: | 22 kW |
| 기계 치수: | 2.8*2.1*3.4 m | ||
| 강조하다: | 160T Clamping Force Vertical Injection Molding Machine,1 Year Warranty Vertical Injection Molding Machine,Vertical Clamping Plastic Injection Molding Machine |
||
제품 설명

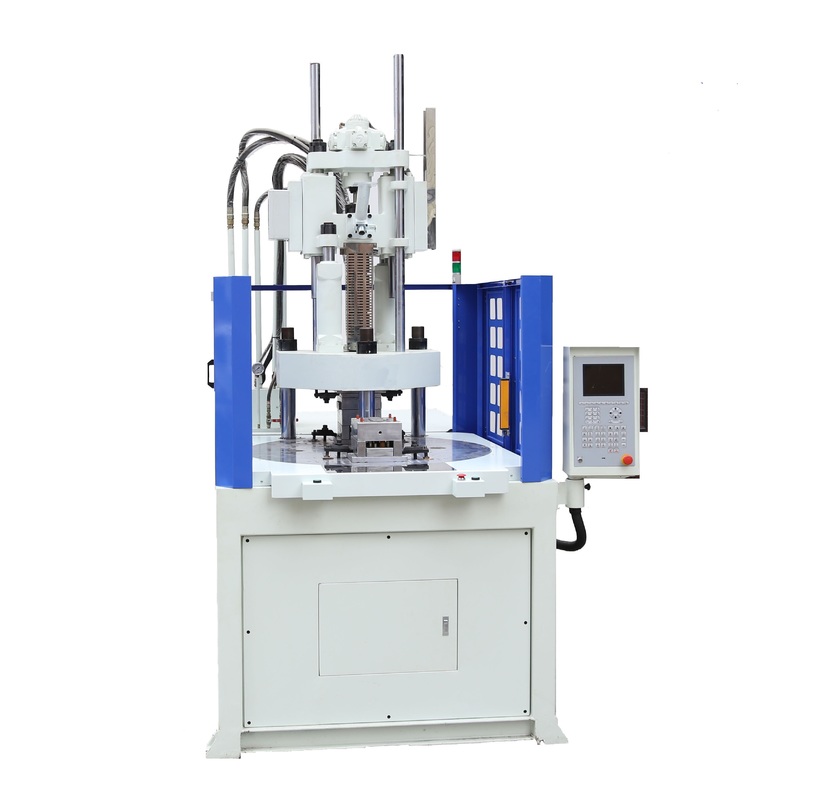

Vertical Rotary Injection Molding Machine JTT-1600R
Key Specifications
| Clamping Force | 160T |
| Injection Weight | 344-513g |
Product Features
- Vertical clamping and vertical injection design
- Easy torque, speed, and deceleration distance adjustment
- Computer-controlled rotary table with multiple rotation modes
- Optional energy-saving motor available
- Adjustable clamping force, injection weight, and shot speed
- Multi-station configuration options (2, 3, or more stations)
Product Images
Technical Advantages
Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases productivity by 15%
Low heating: Reduces cooling water requirement by 55%
Low noise: Optimized motor operation reduces noise by 15-20db
Precision: Closed-cycle control with pressure sensor and motor rotary encoder for consistent output
Service Commitment
With 17 years of experience, we've developed systematic service processes and maintain a 24-hour response mechanism to promptly address customer needs and provide optimal solutions.
Packaging & Delivery
