제품 상세 정보:

원래 장소: 광동, 중국
브랜드 이름: JINTONG
모델 번호: JTT-850R

결제 및 배송 조건:

최소 주문 수량: 1 조각
가격: $26,000-27,000 / piece
최고의 가격 접촉

상세 정보
가소화 능력: 180 g/s 주형 높이: 110 - 450mm
방출기 수: 2 이젝터 스트로크: 75mm
이젝터 힘: 33kN 이론적 샷 볼륨: 276cm³
주사율: 167g/초 주입 중량: 330g
나사 속도: 1 ~ 200 Rpm 나사 직경: 50 mm
나사 L/D 비율: 25 타이 바 사이의 거리: 560 mm
무게: 4000kg 오픈 스트로크: 500mm
힘: 21.6kW
강조하다:

85T Vertical Injection Molding Machine

,

33 kN Ejector Force Rotary Injection Molding Machine

,

276 cm³ Theoretical Shot Volume Plastic Injection Molding Machine

제품 설명

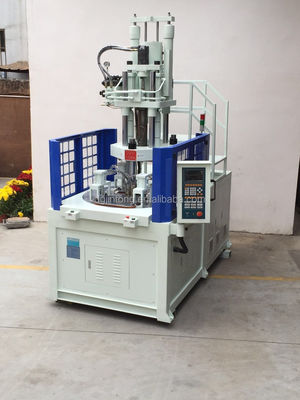

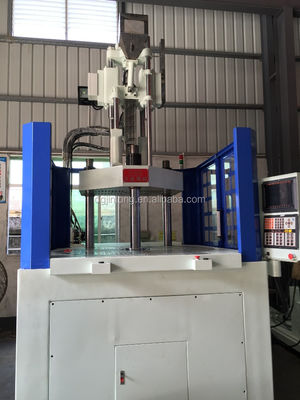

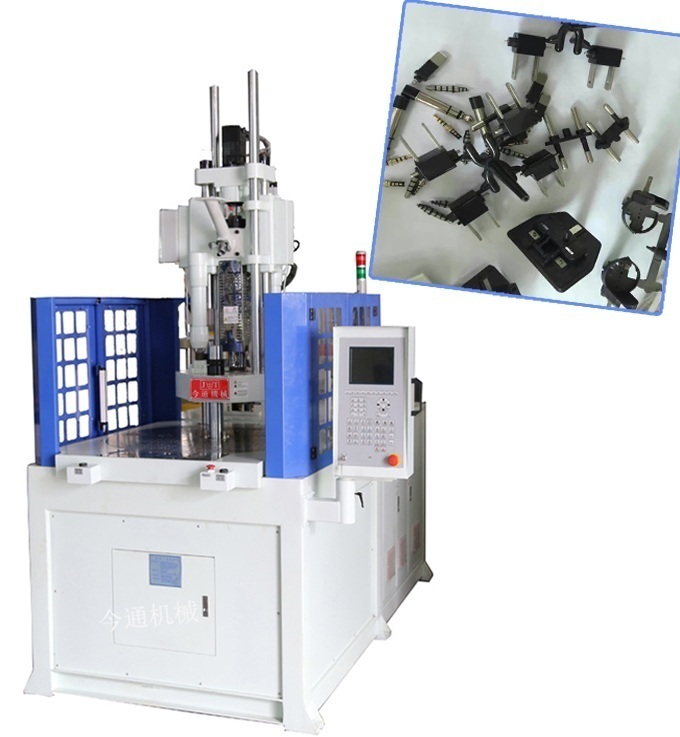

Full-auto Vertical Rotary Injection Molding Machine 85T
Product Description
Model: JTT-850R
Clamping Force: 85T
Injection Weight: 165-272g
  • Vertical clamping, vertical injection
  • Easy to set torque, speed, deceleration distance and stand number segmentation
  • Computer program control rotary table direction (forward-rotating, reverse-rotating, forward and reverse alternative rotating)
  • Optional energy-saving motor
Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 0 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 1 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 2 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 3
Main Features
  • Vertical clamping, vertical injection
  • Clamping force, injection weight and shot speed can be adjusted according to actual demand
  • Available in 2 stations, 3 stations, or multi-station configurations (one up die, two or four down die)
  • Easy operation for insert parts, improves productivity
Certifications
Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 4 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 5 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 6 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 7
Detailed Images
Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 8 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 9 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 10 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 11 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 12
Product Advantages
  • Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
  • High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
  • Low heating: Saves 55% cooling water quantity compared to similar products
  • Low noise: Optimized motor working condition with imported bearing and oil pump reduces noise by 15-20db
  • Precision: Complete close-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
17 years of customer service experience with a systematic and standardized service process. We maintain a 24-hour response mechanism to promptly solve customer problems and provide excellent service.
Packing & Delivery
Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 13 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 14 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 15 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 16 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 17
