상세 정보 |
|||
| 클램핑 력: | 200t | 주입 중량: | 456-662G |
|---|---|---|---|
| 이젝터 스트로크: | 75mm | 이젝터 힘: | 48 kN |
| 샷 볼륨: | 678cm³ | 주사율: | 212g/초 |
| 나사 직경: | 60mm | 타이 바 거리: | 760mm |
| 기계 무게: | 12000 KG | 오픈 스트로크: | 600mm |
| 힘: | 44.3kW | 스크류 스트로크: | 260mm |
| 여는 힘: | 22.4t | 회전 테이블 지름: | 1500mm |
| 기계 치수: | 3.0*2.2*3.6m | ||
| 강조하다: | 200T Clamping Force Vertical Injection Moulding Machine,High Productivity Rotary Table Injection Moulding Machine,1 Year Warranty Vertical Plastic Injection Moulding Machine |
||
제품 설명

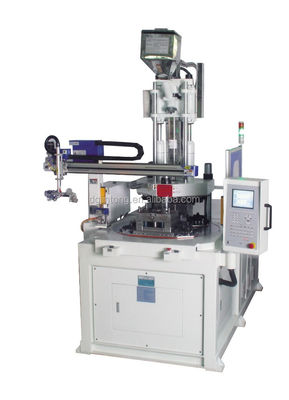

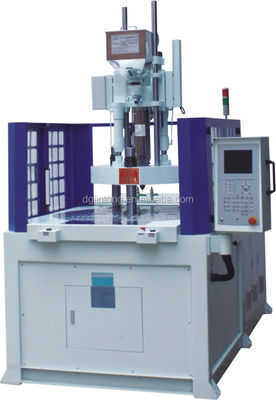

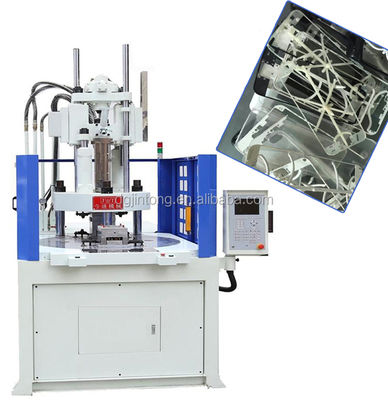

Rotary Table Vertical Plastic Injection Moulding Machine 200T (Model JTT-2000R)
Key Specifications
| Clamping Force | 200T |
|---|---|
| Injection Weight | 456-662g |
Product Description
Vertical clamping and injection system with rotary table functionality for efficient plastic molding operations.
Main Features
- Vertical clamping and injection system
- Adjustable clamping force, injection weight and shot speed
- Multiple station configurations (2, 3 or multi-station)
- Computer-controlled rotary table with forward, reverse, and alternating rotation
- Optional energy-saving motor available
- Easy torque, speed, and deceleration distance adjustment
Product Advantages
Energy Efficiency
Saves 30% energy compared to similar products using SIFU pump system
High Productivity
SIFU motor with max speed 2200/min increases oil pump output, improving productivity by over 15%
Thermal Management
Reduces cooling water requirement by 55% compared to similar machines
Quiet Operation
Optimized motor with imported bearing and oil pump reduces noise by 15-20db
Precision Molding
Closed-cycle control with pressure sensor and motor rotary encoder ensures product consistency
Service Advantage
With 17 years of customer service experience, we've developed systematic and standardized service processes including a 24-hour response mechanism to promptly resolve customer issues.
