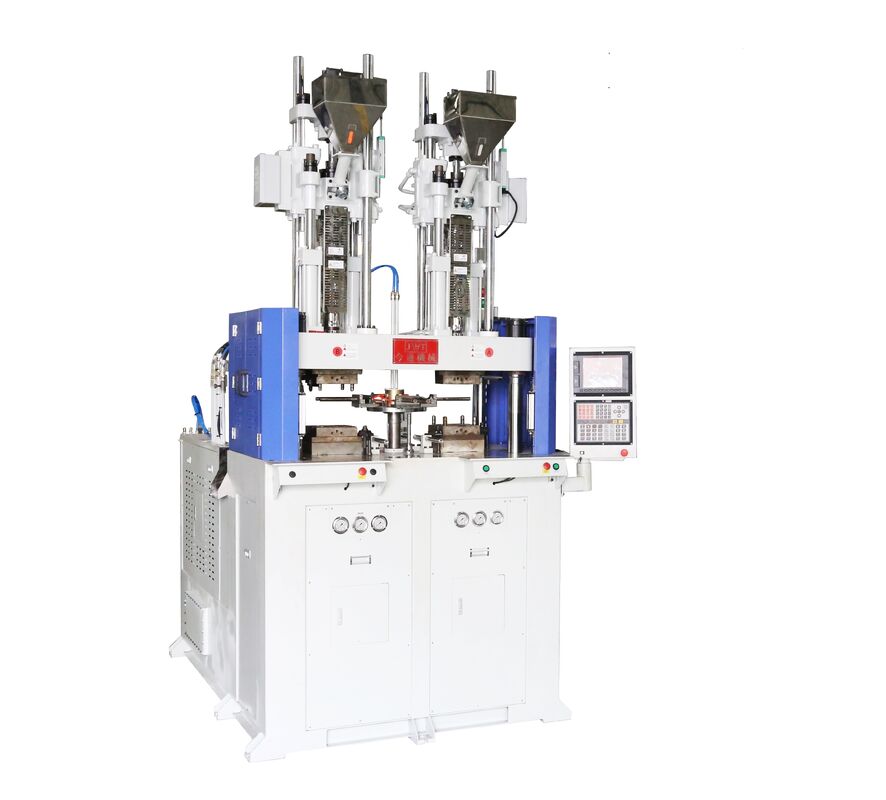

JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400

JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400

제품 상세 정보:

원래 장소: 중국 광둥
브랜드 이름: JINTONG
모델 번호: JTT2V3R-2400

결제 및 배송 조건:

최소 주문 수량: 1
가격: $72,000-76,200
최고의 가격 접촉

상세 정보
플라스틱 가공: PP, PVC, TPE 스타일: 수직의
플레이스티치즈링 능력(g/s): 400 주형 높이(MM): 160 - 520mm
방출기 수: 2 방출기 타격(MM): 110
방출기 힘(kN): 110 이론적 샷 크기(cm3): 725
사출률 (g/s): 275 기계 유형: 유압
사출 중량(g): 573 스크류 속도(rpm): 1 ~ 200 Rpm
나사 직경(mm): 55 나사 L/D 비율: 25
타이 바 사이의 거리: 650 무게(KG): 13000
오픈 스트로크(mm): 500 전력(kW): 45
보증: 1년 주요 판매 포인트: 에너지 절약
기계 시험 보고서: 제공 영상출고검사: 제공
핵심 구성요소: 베어링, 모터, 펌프, PLC, 압력용기, 스크류 주입 중량: 724G
주사율: 151-314CM3/S 여는 치기: 250mm
판매 후 서비스 제공: 해외 기계 서비스에 사용할 수 있는 엔지니어 나사 직경: 42mm 48mm 55mm
오일 탱크: 900L 제품명: 센터 터렛 2색 소재 사출 성형 JTT2V3R-2400
상단 압반 크기: 920*1200mm 맥스 일광: 650mm
최소 나이: 300mm
강조하다:

hydraulic vertical injection molding machine

,

PVC PP screw injection molding machine

,

energy saving vertical injection moulding machine

제품 설명

Get the Hightlights

  • Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
  • clamping force: 240T
  • Different injection combination can be chosen to reach best productivity and less power loss according to different shot weight
  • One molding for dual-color/material embeded products, multi-sation rotary design, stable rotation, precise position, easy to put and pick out products
  • Injection system can be used individually
  • two color/material inject at the same time, suitable for all kinds of mold

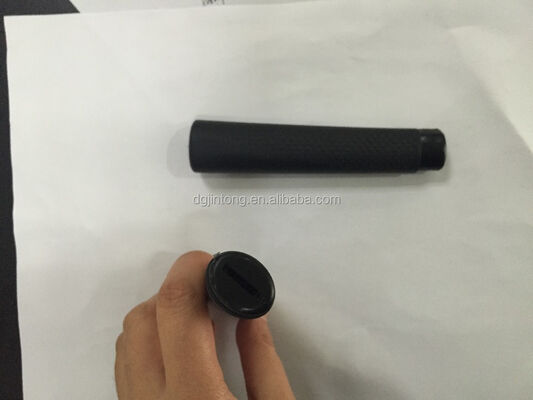

  • samples: tooth brush, trademark, different kinds of accessories,handle of bicycle or electric vehicles
DETAIL SHOT
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 0
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 2
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 4
ABOUT THE SUPPLIER
Dongguan Jintong Plastic Machinery Co., Ltd. specializes in vertical injection molding machines, offering advanced solutions for diverse industries. With 2000T clamping force capabilities and proprietary IP, the company delivers high productivity, precision, and reliability. Certified to European standards, Jintong provides comprehensive service and export solutions across Southeast Asia, Europe, and South America.
COMPANY OVERVIEW
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 6
COMPETITIVE ADVANTAGES
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 8
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 10
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 12

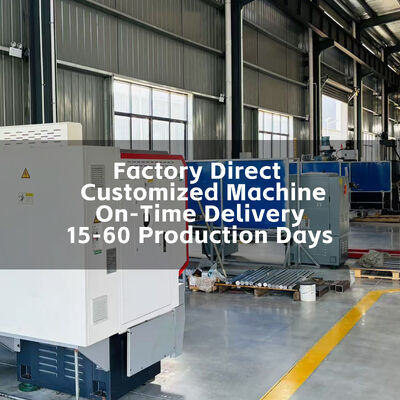

FACTORY PROFILE
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 14
CUSTOMIZATION CAPABILITIES
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 16
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 18
PRODUCTION WORKFLOW
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 20
TRADE SHOW PARTICIPATION
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 22
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 24
PACKAGING & SHIPPING SPECIFICATIONS
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 26
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 28
JINTONG Center Turret Two Color Material Hydraulic Vertical Injection Molding Machine PVC/PP Screw Energy Saving JTT2V3R-2400 30
FAQs
Q: Are you trading company or factory?
A: We are factory to produce vertical injection molding machine more than 20 years.
Q: What is your machine warranty period?
A: 1 year against BL on board time
